Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities

ブランド名:	JUTAI
モデル番号:	GL-無線LAN
MOQ:	サポートサンプル 1-10 pcs
価格:	交渉可能
パッケージの詳細:	カートン
支払条件:	T/T、ウェスタンユニオン、Wechat、Alipay、Paypal

製品の説明

起源の場所:

中国深セン

電源入力:

DC 12-24V/1A (5V カスタマイズ可能)

リレー出力:

2/3チャンネル共用コモン端子

DC30V/2A、AC220V/1A

インターフェース:

1×CAN、1×RS485、2×RS232

通信する:

WIFI/4G + Buletooth

動作温度:

-30~80°C

供給の能力:

5000個/月

ハイライト:

WiFi gate access control system

Cloud-based access control 12-24V DC

Multi-account WiFi door control

製品の説明

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities

The Cloud-Based WiFi Gate Access Control System is a streamlined, high-efficiency access management solution tailored for community and commercial facilities. Built with universal 12–24V DC power compatibility and a stable 2-relay output design, it integrates smoothly with most standard gate hardware without complex modifications. This cloud-powered system replaces traditional, labor-heavy on-site control with intelligent remote management, resolving common operational hurdles and boosting both security standards and management efficiency for diverse public and commercial access points.

A core advantage of this system is its full PC software support, which provides administrators with a centralized and intuitive platform to oversee gate operations in real time. It comes with robust multi-account management that enables hierarchical permission configuration, allowing tailored access rights for property managers, on-site staff, and temporary visitors alike. This structured authority control effectively blocks unauthorized entry, streamlines daily access oversight, and replaces messy manual permission tracking, greatly cutting down the administrative workload for facility management teams.

The cloud-based architecture keeps all access records securely stored and fully traceable, supporting quick log reviews and compliance verification whenever required. Its simple wiring and fast deployment mean no extensive reconstruction is needed to fit existing access setups, saving both installation time and upfront costs. Engineered for long-term stability and minimal maintenance, this system blends flexible hardware compatibility, powerful cloud management, and user-friendly operation. It stands as a reliable, cost-effective security upgrade for communities and commercial facilities that aim to adopt efficient, modern access control solutions.

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 0

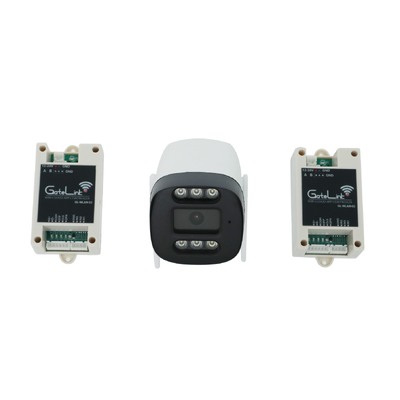

GL-WLAN-01	GL-WLAN-02	GL-WLAN-03

JUTAI GateLink Smart Controller & Camera Core Parameter Summary

General Controller Specifications (All Models)

All industrial-grade controllers support WiFi + BLE dual-mode communication, MQTT protocol and OTA remote firmware update, with built-in mobile APP/Bluetooth remote control and security alarm functions. They feature a wide operating temperature of -30°C ~ 80°C for stable operation in harsh environments.

Model-Specific Controller Parameters

GL-WLAN-01 (2-Relay WiFi Controller)

Power input: DC 12-24V/1A (5V customizable)
Relay output: 2 channels with shared common terminal
Load rating: DC 30V/2A, AC 220V/1A
Dimensions: 109.5 × 41.1 × 25.6 mm

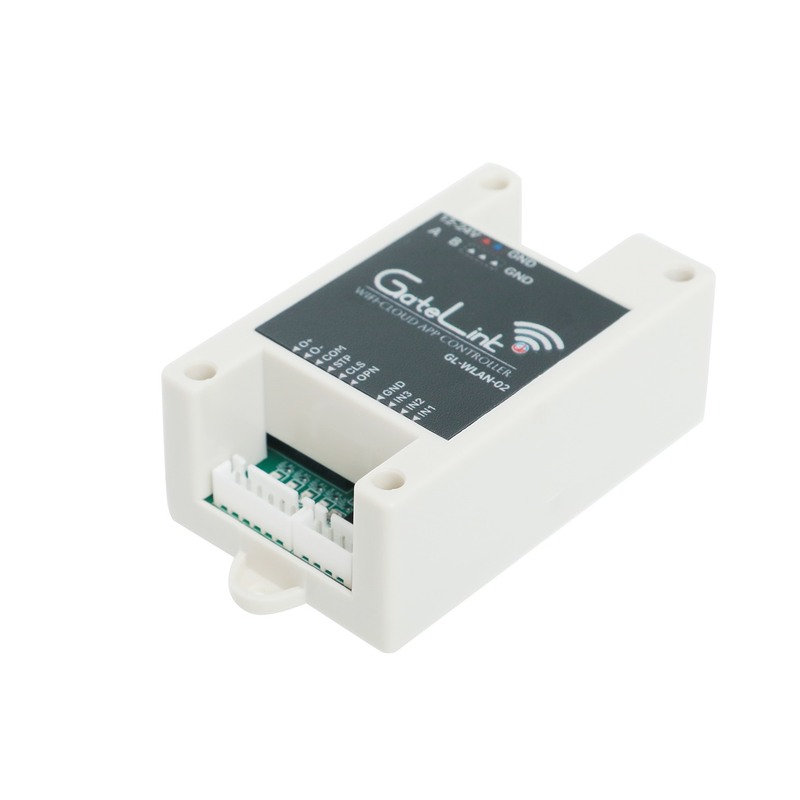

GL-WLAN-02 (4-Relay WiFi Controller)

Power input: DC 12-24V/1A (5V customizable)
Expansion port: 1 × RS485
Relay output: 3 shared common channels + 1 independent channel
Load rating: DC 30V/1A, AC 125V/1A
Dimensions: 96.5 × 50 × 31.4 mm

GL-WLAN-03 (4-Relay 4G Controller)

Power input: DC 12-48V (max peak voltage 60V)
Communication: 4G + WiFi + BLE triple-mode
Expansion ports: 1 × CAN, 1 × RS485, 2 × RS232
Input: 4-channel isolated digital input
Relay output: 4-channel independent NO/NC output
Load rating: DC 30V/10A, AC 220V/10A (high-power support)
Dimensions: 135 × 80 × 40 mm

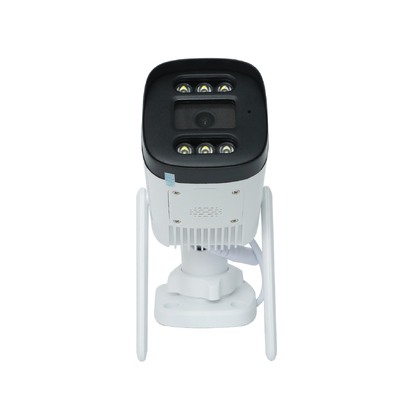

Camera Pixel Parameters

GL-200H26-IR WiFi Camera: 2.0 Megapixels (2MP)
GL-R300H265-IR WiFi Camera: 3.0 Megapixels (3MP)
JTNP-ZS500W(D)-RA5 LPR Camera: 1080P HD resolution

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 4

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 5

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 6

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 7

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 8

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 9

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 10

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 11

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 12

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 13

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 14

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 15

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 16

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 17

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 18

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 19

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 20

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 21

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 22

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 23

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 24

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 25

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 26

Cloud-Based WiFi Gate Access Control System 12-24V DC 2-Relay Output PC Software Support Multi-Account Management for Community & Commercial Facilities 27
